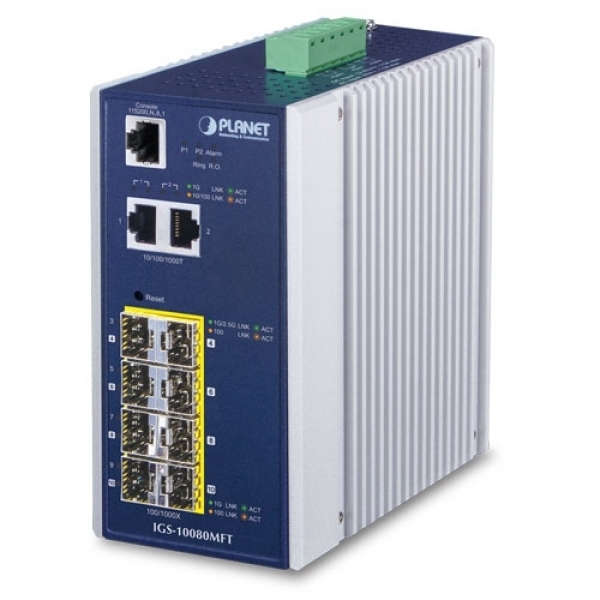

É um Switch Industrial Ethernet Gerenciado e Full Gigabit de 10 Portas. Especialmente projetado para construir um backbone Gigabit completo para transmitir dados confiáveis de alta velocidade através de fibra óptica em ambientes industriais exigentes.
Possui duas portas SFP 100/1000/2500BASE-X , seis portas SFP 100/1000BASE-X e duas interfaces de cobre 10/100/1000BASE-T com grau de proteção IP30.
Physical Port
10/100/1000BASE-T Ethernet ports (Ports 1 to 2)
2 100/1000/2500BASE-X SFP ports (Ports 3 to 4)
6 100/1000BASE-X SFP ports (Ports 5 to 10)
Industrial Case and Installation
Redundant power design
12 to 48V DC, redundant power with reverse polarity protection
AC 24V power adapter acceptable
Backup of catastrophic power failure on one supply
Fault tolerance and resilience
IP30 aluminum case
DIN-rail and wall-mount designs
Supports 6000 VDC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Industrial Protocol
Modbus TCP for real-time monitoring in SCADA system
IEEE 1588v2 PTP Transparent clock mode (Precision Time Protocol)
Layer 2 Features
Prevents packet loss with back pressure (half-duplex) and IEEE 802.3x pause frame flow control (full-duplex)
High performance of Store-and-Forward architecture, and runt/CRC filtering eliminates erroneous packets to optimize the network bandwidth
Storm Control support
Broadcast/Multicast/Unicast
Supports VLAN
IEEE 802.1Q tagged VLAN
Up to 4K VLANs groups, out of 4094 VLAN IDs
Provider Bridging (VLAN Q-in-Q) support (IEEE 802.1ad)
Private VLAN Edge (PVE)
Protocol-based VLAN
MAC-based VLAN
Voice VLAN
GVRP (GARP VLAN Registration Protocol)
Spanning Supports Tree Protocol
IEEE 802.1D Spanning Tree Protocol (STP)
IEEE 802.1w Rapid Spanning Tree Protocol (RSTP)
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Provides port mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports G.8032 ERPS (Ethernet Ring Protection Switching)
Compatible with Cisco uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
IP TOS/DSCP/IP precedence
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
