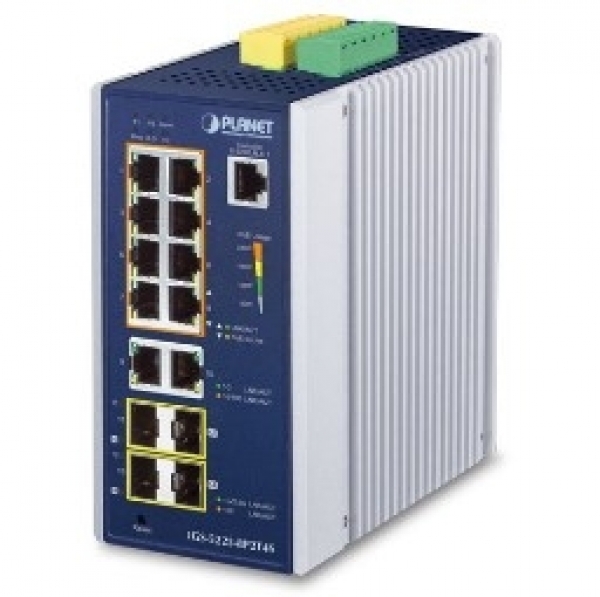

É um swtich industrial gerenciado, com 8 portas 10/100/1000BASE-T 802.3at PoE+ com cada porta alimentando até 36 watts, duas portas 10/100/1000BASE-T , duas portas SFP 100/1000 BASE-X e duas portas SFP 100/1000/2500 BASE-X.
Physical Port
8 10/100/1000BASE-T Gigabit Ethernet RJ45 ports with IEEE 802.3at PoE+ injector function
2 10/100/1000BASE-T Gigabit Ethernet RJ45 ports
2 100/1000BASE-X SFP ports for SFP type auto detection
2 100/1000/2500BASE-X SFP ports for SFP type auto detection
One RJ45 console interface for basic management and setup
Power over Ethernet
Complies with IEEE 802.3at Power over Ethernet Plus/end-span PSE
Up to 8 IEEE 802.3af/802.3at devices powered
Supports PoE power up to 36 watts for each PoE port
Auto detects powered device (PD)
Circuit protection prevents power interference between ports
Remote power feeding up to 100m
PoE management features
PoE admin-mode control
PoE management mode selection
PoE legacy mode selection
PoE budget setup option
Per port PoE function enable/disable
PoE port power feeding priority
Per PoE port power limit
PoE port status monitoring
PD classification detection
Sequence port PoE
PoE extend mode control to support power feeding up to a distance of up to 160 meters
Intelligent PoE features
Temperature threshold control
PoE usage threshold control
PoE schedule
PD alive check
LLDP PoE Neighbors
Industrial Protocol
Mod bus TCP for real-time monitoring in the SCADA system
IEEE 1588v2 PTP (Precision Time Protocol) transparent clock mode
Industrial Case and Installation
IP30 aluminum case
DIN-rail or wall-mount design
48~56V DC, redundant power with reverse polarity protection
Supports 6KV DC Ethernet ESD protection
-40 to 75 degrees C operating temperature
Digital Input and Digital Output
2 digital input (DI)
2 digital output (DO)
Integrate sensors into auto alarm system
Transfer alarm to IP network via email and SNMP trap
Layer 3 IP Routing Features
Supports maximum 32 static routes and route summarization
IEEE 802.1s Multiple Spanning Tree Protocol (MSTP), spanning tree by VLAN
BPDU Filtering/BPDU Guard
Supports Link Aggregation
802.3ad Link Aggregation Control Protocol (LACP)
Cisco ether-channel (static trunk)
Maximum 6 trunk groups with 4 ports per trunk group
Up to 8Gbps bandwidth (duplex mode)
Provide sport mirror (many-to-1)
Port mirroring to monitor the incoming or outgoing traffic on a particular port
Loop protection to avoid broadcast loops
Supports ERPS (Ethernet Ring Protection Switching)
Compatible with Cisco Uni-directional link detection(UDLD) that monitors a link between two switches and blocks the ports on both ends of the link if the link fails at any point between the two devices
Link Layer Discovery Protocol (LLDP)
IEEE 802.3ah OAM
Quality of Service
Ingress Shaper and Egress Rate Limit per port bandwidth control
8 priority queues on all switch ports
Traffic classification
IEEE 802.1p CoS
IP TOS/DSCP/IP precedence
IP TCP/UDP port number
Typical network application
Strict priority and Weighted Round Robin (WRR) CoS policies
Supports QoS and In/Out bandwidth control on each port
