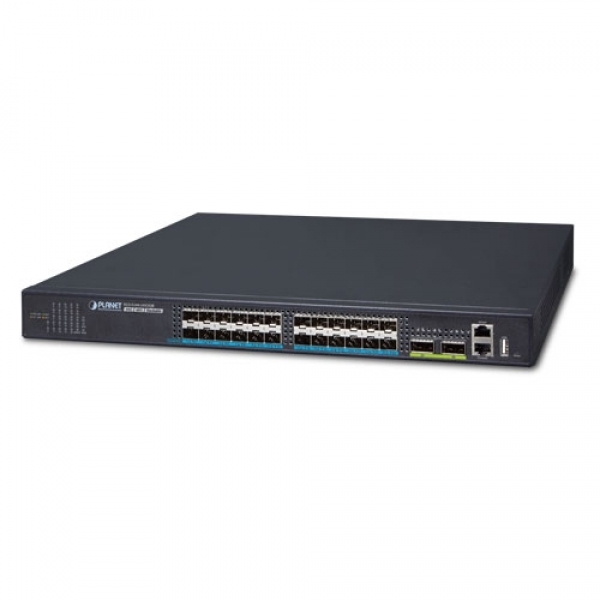

É um switch gerenciado empilhável de camada 2+ de alto desempenho que atende aos requisitos de rede Metro, Data Center, Campus e Enterprise. Suporta capacidade de roteamento estático IPv4/IPv6 Camada 3 e abundante mecanismo de comutação L2/L4, com 24 portas 10G SFP+ e 2 portas 40G QSFP+ de alta densidade fornecidas em um chassi resistente de 1U.
Suporta a função de empilhamento que ajuda os gerentes de rede a configurar facilmente até 24 switches na pilha. A tecnologia de empilhamento IP agrupa os switches XGS-5240-24X2QR para permitir o gerenciamento centralizado por meio de uma única unidade.
Physical Port
24 10GBASE-SR/LR SFP+ ports, compatible with 1000BASE-SX/LX/BX SFP
2 QSFP+ slots with each supporting native 40G and four 10 Gigabit Ethernet modes.
1 10/100/1000BASE-T RJ45 in-band management port
1 USB2.0 interface for configuration and firmware storage
RJ45 console interface for switch basic management and setup
Stacking Features
Hardware Stacking
- Virtualized multiple XGS-5240-24X2QR switches into one logical device
- Connects with stack member via assigned 10G SFP+ interfaces or 40G QSFP+ interfaces
- Single IP address stack management, supporting up to 4 switches stacked together
- Stacking architecture supports redundancy Ring mode
IP Stacking
- Connects with stack member via both SFP+ and QSFP+ interfaces
- Single IP address management, supporting up to 24 units stacked together
IP Routing Features
IP routing protocol supports
Routing interface provides per VLAN routing mode
Supports route redistribution
Layer 2 Features
Prevents packet loss flow control
- IEEE 802.3x pause frame flow control in full-duplex mode
- Back-pressure flow control in half-duplex mode
High performance Store-and-Forward architecture, broadcast storm control and port loopback detection
32K MAC address table, automatic source address learning and aging
